  • PAM TRUVA Roasting Machine

    Product Categories
    PAM TRUVA Roasting Machine

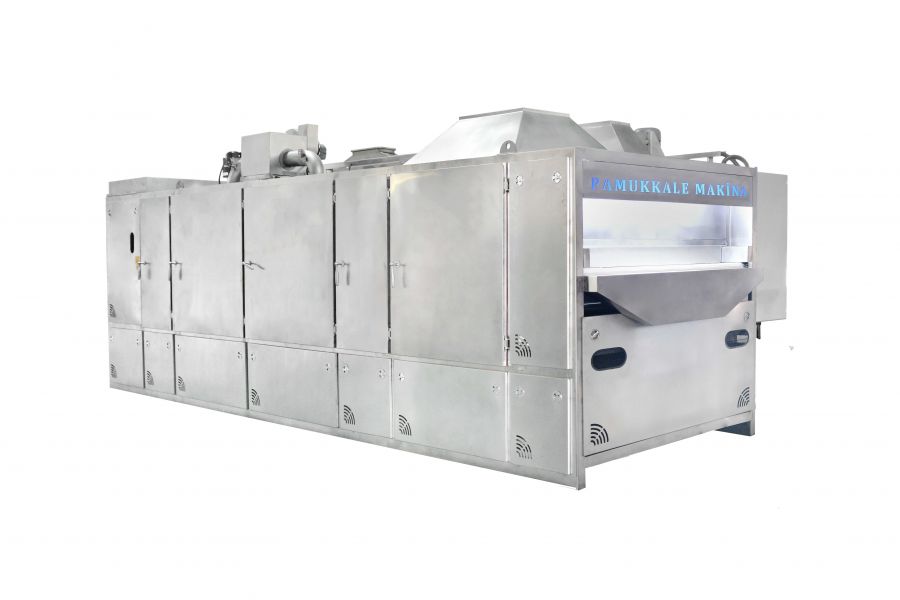

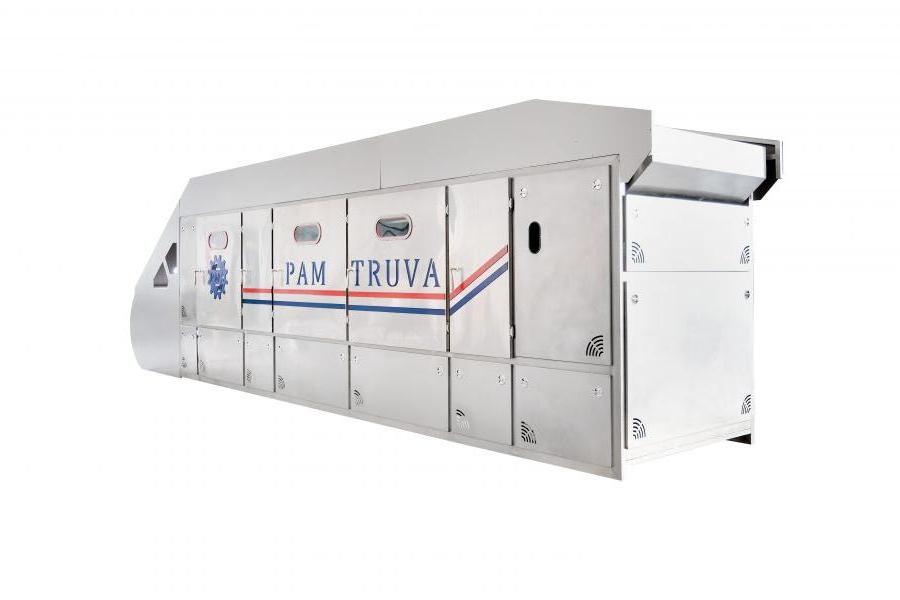

    PAM TRUVA ROASTING MACHINE, which has become the favorite of large enterprises with its ability to meet the need for high-capacity production, can produce 500 kg of nuts per hour. This machine increases its production capacity with less human power due to its advanced automation and control systems. Thanks to the saveable recipe feature, you can choose which nuts you want to be roasted from hazelnuts, pistachios, almonds, cashews, pistachios, seeds, etc. It can bring many roasting settings of the nuts with a click. This model also has two resting/humidity rooms, two roasting ovens, and one cooling room. The belt of our machine and the roasting temperature in the roasting rooms can be adjusted with a PLC panel, as in our other belted devices and our other belted and high-capacity roasting machines; this machine also has a brush and washing band. Fuel options include Gas, LPG, Diesel, Electricity, and Solid Fuel. Our products have TSE, CE, and CSA qualifications and competence certificates.

    How to Work:

    Z-Elevator transports nuts on manual or fully automatic lines that go to the salting stage. At this stage, the product comes out of the salting machine as sauced or salted for a certain period. Secondly, they are emptied into the raw product chamber of the roasting engine, and from there, they first enter the resting/humidity chamber. Thirdly, they move on to 2 roasting rooms where you can adjust the temperatures separately. Later, the nuts and dried fruits are roasted homogeneously and evenly and pass into the second resting chamber. Finally, the nuts, which are cooled in the cooling room, are discharged to the sieve or storage vehicle that you will add from the exit section of the machine with the help of a belt.

    Production Capacity

    Hazelnut 700-900 KG/H
    Pistachio 700-900 KG/H
    Almond 700-900 KG/H
    Cashew 700-900 KG/H
    Peanut 700-900 KG/H
    Pumpkin Seeds 650-800 KG/H
    Sunflower Seeds 600-750 KG/H
    Shelled Peanut 400-500 KG/H

    Technicial Specifications

    ELECTRICITY

    Length 9700 mm
    Width 3300 mm
    Height 2750 mm
    Weight 5700 kg
    Power 150 kW
    Consumption 115 kW

    NATURAL GAS, LPG
    Length 9700 mm
    Width 3300 mm
    Height 2750 mm
    Weight 6000 kg
    Power 11 kW
    Consumption 30,23 m³/h
